Our Equipment

HP Pump Units

Single-skid Hydroplex high-pressure pump systems. All units include ESD, pop-off valve, 100' discharge hose, and certified slings.

Request a Unit

HP-1050

High-Flow · 1½" Plungers

9,000 PSI · 42 GPM @ 2200 RPM

Deutz 6-Cylinder Diesel · 4-Speed Transmission

9'L × 4'6"W × 5'3"H · 5,000 lbs

Specifications

Configuration	Max PSI	GPM @ 2200	GPM @ 1800
1½" Plungers	9,000	42.00	34.27

9'L × 4'6"W × 5'3"H · Max 5,000 lbs · Certified Slings

Standard Equipment

100' Chemical Resistant Discharge Hose w/ 2" 1502 End Connection
2½ BBL Holding Tank or Remote Suction (2" Cam-Lock)
Deutz 6-Cylinder Diesel Engine, 4-Speed Transmission
20-Gallon Diesel Tank
Emergency Shutdown (ESD) · Pop-Off Valve
Single Skid · Certified Slings

Spec Sheets

Hydroplex HP-1050 Spec Sheet Deutz Engine Spec Sheet

HP-950

High-Flow · 1½" Plungers

5,000 PSI · 50.31 GPM @ 2150 RPM

Deutz 6-Cylinder Diesel · 4-Speed Transmission

9'L × 4'6"W × 5'3"H · 5,000 lbs

Specifications

Configuration	Max PSI	GPM @ 2150	GPM @ 1800
1½" Plungers	5,000	50.31	42.12

9'L × 4'6"W × 5'3"H · Max 5,000 lbs · Certified Slings

Standard Equipment

100' Chemical Resistant Discharge Hose w/ 2" 1502 End Connection
2½ BBL Holding Tank or Remote Suction (2" Cam-Lock)
Deutz 6-Cylinder Diesel Engine, 4-Speed Transmission
20-Gallon Diesel Tank
Emergency Shutdown (ESD) · Pop-Off Valve
Single Skid · Certified Slings

Spec Sheets

Hydroplex HP-950 Spec Sheet Deutz Engine Spec Sheet

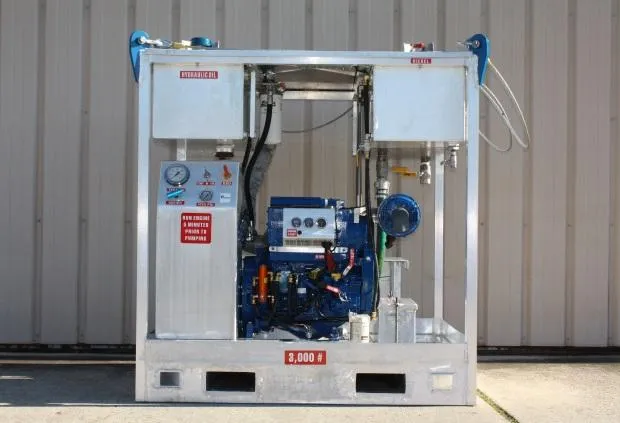

HP-550

Ultra High-Pressure · Two Plunger Configurations

Up to 15,000 PSI · Up to 33 GPM

Deutz 6-Cylinder Diesel · 4-Speed Transmission

9'L × 4'6"W × 5'3"H · Alum. 5,000 / Steel 7,000 lbs

Plunger Configurations

Plungers	Max PSI	GPM @ 2200	GPM @ 1800
¾" Standard	15,000	11.88	9.72
1¼" High Flow	5,000	33.22	27.23

Skid weight: Aluminum 5,000 lbs · Steel 7,000 lbs
Both configurations available — specify when requesting.

Standard Equipment

100' Chemical Resistant Discharge Hose w/ 2" 1502 End Connection
2½ BBL Holding Tank or Remote Suction (2" Cam-Lock)
Deutz 6-Cylinder Diesel Engine, 4-Speed Transmission
20-Gallon Diesel Tank
Emergency Shutdown (ESD) · Pop-Off Valve
Single Skid · Certified Slings

Spec Sheets

Hydroplex HP-550 Spec Sheet Deutz Engine Spec Sheet

HP-350

Ultra High-Pressure · Three Plunger Options

Up to 25,000 PSI · 1.53–4.5 GPM @ 450 RPM

Deutz 3-Cylinder Diesel · Hydraulic or Transmission Drive

5'6"L × 4'6"W × 6'0"H · 3,500 lbs

Plunger Configurations

Plungers	Max PSI	GPM @ 450 RPM
¾"	10,000	4.50
5/8"	15,000	3.15
7/16"	25,000	1.53

Available with Hydraulic Drive or Transmission/Clutch Drive — specify preference when requesting. Units in both configurations are in stock.

Standard Equipment

100' Chemical Resistant Discharge Hose w/ 2" 1502 End Connection
1 BBL Holding Tank or Remote Suction (2" Cam-Lock)
Deutz 3-Cylinder Diesel Engine
15-Gallon Diesel Tank
Emergency Shutdown (ESD) · Pop-Off Valve
Single Skid · Certified Slings

Spec Sheets

Hydroplex HP-350 Spec Sheet Deutz Engine Spec Sheet

Also Available

Accessories & Rentals

Camlock hoses, diaphragm pumps, and testing fluids to support your complete operation.

Aluminum Diaphragm Pump

Air-operated aluminum body pump. Buna diaphragm, built-in air regulator, and 2" camlock connections. Ideal for water and non-chemical fluids.

Air-Operated Buna Diaphragm 2" Camlock

NDP-50 Pump Data Sheet

Poly Diaphragm Pump

Chemical-service poly body pump. Viton diaphragm with air regulator and 2" camlock connections. Designed for aggressive chemical service.

Chemical Service Viton Diaphragm 2" Camlock

NDP-50 Pump Data Sheet

Camlock Hoses

Chemical-resistant camlock hoses in various lengths. Available individually — ideal when you already have a pump but need additional run hose.

Camlock Fittings Chemical Resistant Various Lengths

Glycol Tote (SS)

Large-volume stainless steel totes of glycol — a standard testing liquid for pressure and BOP testing operations on the Gulf Coast.

Stainless Steel Testing Fluid Large Volume

KCL Tote (SS)

Stainless steel totes of potassium chloride (KCL) — a common testing and kill fluid used in well service and pressure testing applications.

Stainless Steel Testing / Kill Fluid Large Volume

Need Something Else?

We may have what you need. Call or send a message to ask about availability.

Get in Touch

Where We Work

Pump Applications

Our HP units are engineered to handle the full spectrum of oilfield pressure pumping requirements.

Slickline / Wireline Support

BOP Testing

Chemical Injections

Hydrostatic Pressure Testing

Pipeline Cleanout

Paraffin Remediation

Waterflooding

Miscellaneous Pressure Pumping

Why Pelican

Built for the Field

Every unit ships inspection-certified and ready to work. We back every rental with the support your operation demands.

Quality Assured

Every unit undergoes thorough inspection before each shipment. Pop-off valves are set to your exact pressure requirement.

24/7 Support

Round-the-clock technical support ensures your operation never slows down. We're here when you need us — any hour, any day.

GPS Tracking

Remote GPS-enabled systems record usage time and location — giving you full visibility into every unit deployed on your project.

High‑Pressure Pump Rentals

HP Pump Units

Accessories & Rentals

Pump Applications

Built for the Field

Ready to Deploy?
